Agent guide

Beta — This feature is subject to change. The MCP specification and our implementation may evolve.

Flexpa enables agents and AI systems to access patient health data with consent and authorization. Try this for yourself with Claude or ChatGPT.

Patients who link their data to an agent can ask natural language questions about their health data, made possible by our 3-in-1 network of health record access:

"What are my recent claims?"
"Show me my insurance card"
"Summarize my health records"
"What medications am I currently taking?"
"Show me my recent lab results"
"Am I up to date on my vaccinations?"
"Who is on my care team?"
"Find anything in my record about metformin"

#MCP Server

Flexpa exposes a Model Context Protocol (MCP) server that standardizes how AI applications connect to external data sources.

Note: We also support personal use in Claude and ChatGPT. See configurations below.

#How it works

Patient authorizes access through Flexpa Consent
Your application obtains a patient access token or application access token
Configure the MCP client with the token
AI assistant can now query health data through MCP tools and resources

Endpoint

POST https://api.flexpa.com/mcp

Authentication

Authorization: Bearer <access_token>

The MCP server uses the same access tokens as the FHIR API. No additional authentication setup required. Authentication uses OAuth 2.1 PKCE flow as defined by MCP remote authentication requirements and SMART on FHIR.

#Configuration

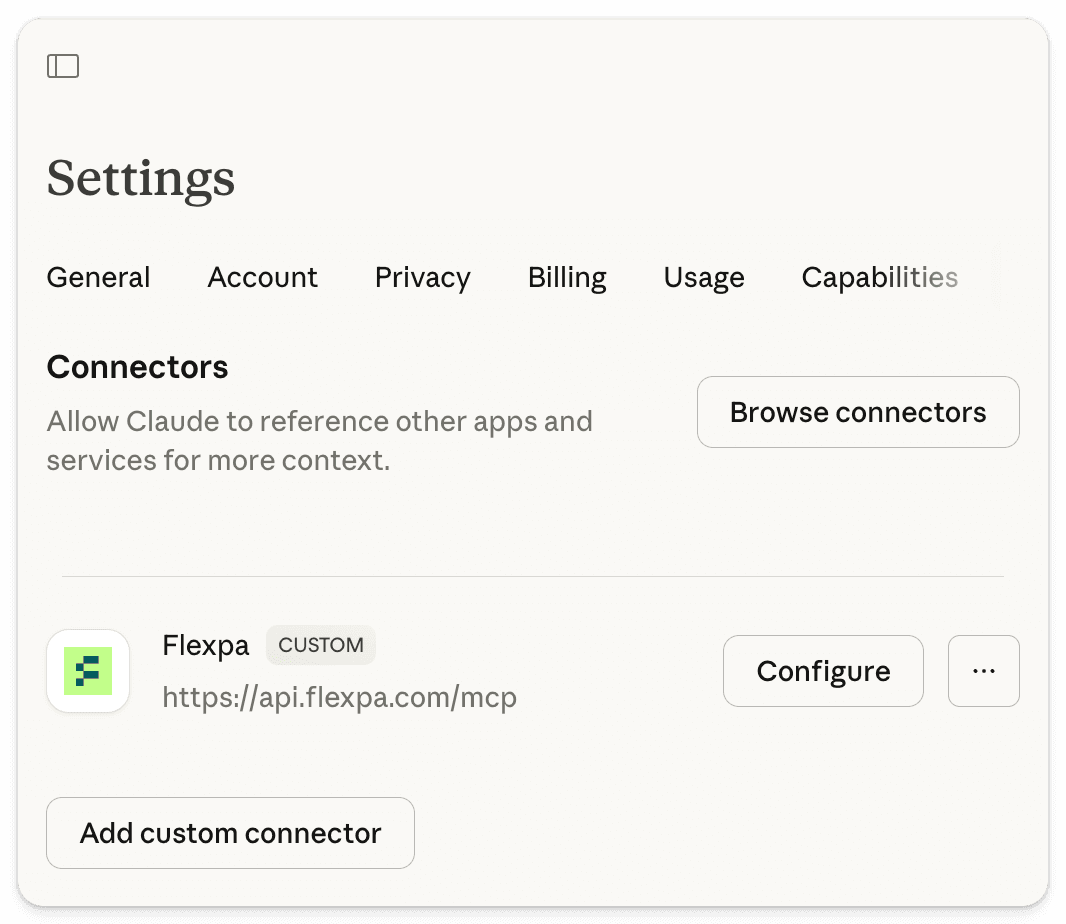

#Claude Desktop / Claude.ai

Add Flexpa as a custom connector in Claude Desktop or Claude.ai.

Go to Settings → Custom Connectors
Click Add Custom Connector
Enter a name (e.g., "Flexpa")
Enter the remote MCP server URL: https://api.flexpa.com/mcp
Click "Connect" to authorize through Flexpa
Complete the authorization flow on the Flexpa page

Once connected, Claude will have access to your health data through MCP tools and prompts.

For team/enterprise plans: Contact your administrator to have the Flexpa MCP server added to your organization.

The custom connector uses remote authentication via OAuth. When you click "Connect", you'll be redirected to Flexpa to authorize access to your health data.

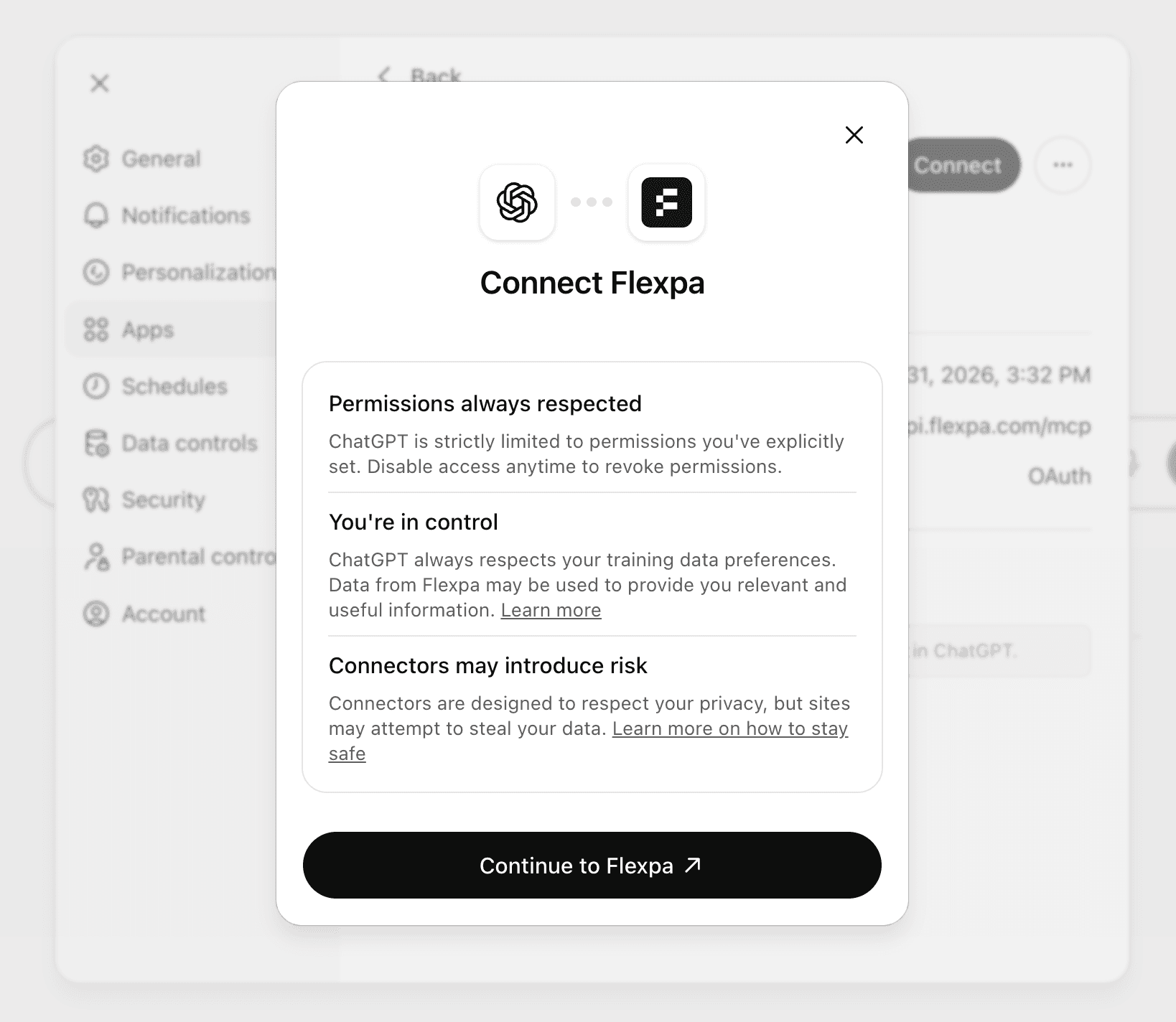

#ChatGPT

Add Flexpa as an MCP app in ChatGPT using developer mode.

Enable developer mode:

Go to Settings → Security and login
Toggle developer mode on

Create app:

Go to Settings → Plugins and click +
Enter a name: "Flexpa"
Add a description explaining it provides health data access
Enter the URL: https://api.flexpa.com/mcp
Submit the form

Use in conversation:

Click the + button near the message composer
Select Developer mode and choose Flexpa from your apps
Start asking questions about health data

Adding custom MCP servers requires a paid ChatGPT plan (Plus, Pro, Team, Enterprise, or Education). Developer mode can be enabled on free accounts, but the option to add custom MCP connectors is not available until you upgrade.

#Claude Code

Not supported for patient access tokens — Claude Code currently only works with application access tokens. Patient access token flows are not supported.

Add Flexpa as an MCP server in Claude Code using the CLI or settings file.

The --transport http flag specifies the Streamable HTTP transport.

Claude Code

claude mcp add flexpa \
  --transport http \
  https://api.flexpa.com/mcp

#Resources

MCP resources provide direct access to data via URI. Resources are read-only and return data in a format optimized for AI consumption.

Simplified — flattened structures optimized for AI consumption:

flexpa://patient

Patient demographics

flexpa://insurance-card

Insurance card details (member ID, plan, payer)

flexpa://health-summary

Complete health data summary

flexpa://problems

Problem list (Conditions)

flexpa://allergies

Allergy and intolerance records

flexpa://labs

Laboratory results (last 50)

flexpa://vitalsigns

Vital sign observations (last 50)

flexpa://documents

Clinical document metadata (last 50)

flexpa://medications

Prescriptions and pharmacy claims

flexpa://immunizations

Immunization records (last 50)

flexpa://procedures

Procedure records (last 50)

flexpa://visits

Encounter/visit records (last 50)

flexpa://care_team

Care team members merged across all sources

Raw FHIR — complete FHIR bundles:

flexpa://fhir/Patient

FHIR Patient bundle

flexpa://fhir/Coverage

FHIR Coverage bundle

flexpa://fhir/ExplanationOfBenefit

FHIR EOB bundle (claims)

Resource read

{
  "method": "resources/read",
  "params": {
    "uri": "flexpa://patient"
  }
}

#Tools

MCP tools are functions that AI assistants can invoke to retrieve data. Each tool returns structured health data that the AI can interpret and present to users.

#get_health_summary

Retrieves a comprehensive clinical summary via the International Patient Summary (IPS). Returns structured rows for each clinical section — problems, medications, allergies, immunizations, vital signs, lab results, procedures, past illness, pregnancy history, devices, social history, functional status, plan of care, advance directives, alerts, and patient story.

Parameters

sectionsstring[]: Clinical sections to include. Accepts aliases (problems, medications, allergies, immunizations, vitalsigns, results, procedures, pastillness, pregnancy, devices, socialhistory, functionalstatus, planofcare, advancedirectives, alerts, patientstory) or LOINC codes. Defaults to all 16 sections.
limit_per_sectionnumber: Maximum number of rows to return per section. Omit for no limit.

This is the best starting point for a full clinical picture. Use the dedicated tools (get_problems, get_labs, etc.) when you need pagination, filtering, or deeper detail on a single resource type.

All sections

{
  "name": "get_health_summary",
  "arguments": {}
}

Selected sections

{
  "name": "get_health_summary",
  "arguments": {
    "sections": ["problems", "medications", "allergies"],
    "limit_per_section": 10
  }
}

#get_patient

Retrieves patient demographic information including name, birth date, address, and contact details.

{
  "name": "get_patient",
  "arguments": {}
}

#get_coverage

Retrieves insurance coverage details including plan information, member ID, and coverage period.

{
  "name": "get_coverage",
  "arguments": {}
}

#get_claims

Retrieves recent health insurance claims (Explanation of Benefits). Supports pagination via the limit parameter.

Parameters

limitnumber: Maximum number of claims to return (default: 10)
typestring: Filter by claim type: pharmacy (prescriptions), professional (doctor visits), or institutional (hospital)

{
  "name": "get_claims",
  "arguments": { "limit": 5 }
}

#get_financial_summary

Retrieves an aggregated financial summary of all healthcare costs, computed across up to the 200 most recent Explanation of Benefits. Returns top-level totals for amount submitted, amount paid by insurance, and patient responsibility, plus a per-claim-type breakdown.

Parameters

typestring: Filter by claim type: pharmacy (prescriptions), professional (doctor visits), or institutional (hospital). Omit to include all claim types.

The response includes totalClaims, totalSubmitted, totalPaidByInsurance, totalPaidByPatient, a byType object breaking the same figures down per claim type, and a truncated flag indicating whether the underlying claim set was capped (in which case the totals are a partial summary).

{
  "name": "get_financial_summary",
  "arguments": { "type": "professional" }
}

#get_problems

Retrieves the patient problem list (Conditions). Returns flattened rows including diagnosis code, display name, clinical status, and onset/abatement dates.

Parameters

statusstring: Filter by clinical status: active, resolved, or all (default)

{
  "name": "get_problems",
  "arguments": { "status": "active" }
}

#get_allergies

Retrieves allergy and intolerance records. Returns substance code and display, criticality (low/high), clinical status, reaction description, and severity.

{
  "name": "get_allergies",
  "arguments": {}
}

#get_labs

Retrieves laboratory Observations. Returns test name, result value with units, reference range, interpretation (High/Low/Normal), and effective date. Most recent results first.

Parameters

limitnumber: Maximum number of lab results to return (default: 50)

{
  "name": "get_labs",
  "arguments": { "limit": 20 }
}

#get_vitalsigns

Retrieves vital sign Observations. Returns measurement code, value with units, and effective date. For panel observations like blood pressure, component values are returned as parallel comma-joined strings.

Parameters

limitnumber: Maximum number of vital sign observations to return (default: 50)

{
  "name": "get_vitalsigns",
  "arguments": {}
}

#get_documents

Retrieves DocumentReference metadata. Returns document type, category, date, description, and content MIME type. Use get_document_content to fetch the full text of a document.

Parameters

limitnumber: Maximum number of documents to return (default: 50)

{
  "name": "get_documents",
  "arguments": {}
}

#get_medications

Retrieves medications from two parallel streams: prescriptions (MedicationRequest) and pharmacy claims (ExplanationOfBenefit with type=pharmacy). Returns separate arrays — prescriptions include dosage and refill info; pharmacy claims include cost and dispense date.

{
  "name": "get_medications",
  "arguments": {}
}

#get_immunizations

Retrieves immunization records. Returns vaccine code and display name, occurrence date, lot number, dose quantity, administration site, route, and performer. Most recent records first.

Parameters

limitnumber: Maximum number of immunization records to return (default: 50)

{
  "name": "get_immunizations",
  "arguments": {}
}

#get_procedures

Retrieves clinical procedure records. Returns procedure code and display name, status, performed date, performer, location, reason code, and outcome. Most recent records first.

Parameters

limitnumber: Maximum number of procedure records to return (default: 50)

{
  "name": "get_procedures",
  "arguments": {}
}

#get_visits

Retrieves Encounter (visit) records. Returns encounter class (ambulatory, inpatient, emergency), type, period start/end, reason, discharge disposition, location, service provider, and first participant practitioner. Most recent visits first.

Parameters

limitnumber: Maximum number of visit records to return (default: 50)

{
  "name": "get_visits",
  "arguments": {}
}

#get_care_team

Retrieves the patient's care team by merging practitioners and organizations across CareTeam resources, Encounter participants, claim providers, and prescription requesters. Deduplicates by reference URL. Each member includes their display name, role, and which data sources they appear in.

{
  "name": "get_care_team",
  "arguments": {}
}

#find_in_record

Searches across all available health record data — conditions, allergies, labs, vitals, medications, immunizations, procedures, visits, and documents — for the given query string. Returns matching rows with their source. Useful for natural-language lookups.

The response includes two flags that signal coverage gaps:

truncated — the matches list was cut off at the limit; there may be more matching rows.
incomplete_sources — one or more data sources were capped at 200 rows or returned an error, so results may not cover all records.

Parameters

querystringRequired: Search term to find across all health record data (e.g., "metformin", "hypertension", "2024 lab")
limitnumber: Maximum number of matches to return (default: 20)

{
  "name": "find_in_record",
  "arguments": { "query": "metformin" }
}

#get_document_content

Fetches and extracts the text content of a specific clinical document by DocumentReference ID. For C-CDA XML documents, returns the narrative text. For plain text documents, returns the content as-is. For PDFs, returns a warning with the document URL.

Use get_documents to list available documents and find their IDs first.

Parameters

document_idstringRequired: The DocumentReference resource ID (from get_documents)
max_charsnumber: Maximum characters to return (default: 50,000)

{
  "name": "get_document_content",
  "arguments": {
    "document_id": "<document-id>",
    "max_chars": 10000
  }
}

#fhir_read

Reads a specific FHIR resource by type and ID, returning the complete FHIR JSON. Supported resource types are constrained to CARIN Blue Button and US Core 6.1 profiles.

Parameters

resourceTypestringRequired: FHIR resource type (e.g., Patient, Coverage, ExplanationOfBenefit)
idstringRequired: The unique FHIR resource ID

{
  "name": "fhir_read",
  "arguments": { "resourceType": "Observation", "id": "<resource-id>" }
}

#Prompts

MCP prompts are pre-defined conversation starters that guide the AI assistant. Select a prompt to have Claude automatically fetch and explain your health data.

Available prompts

summarize_health: Get a plain-language summary of your demographics, insurance, and full clinical history
explain_insurance: Explain your insurance coverage in plain language
healthcare_spending: Analyze your healthcare costs and spending breakdown
recent_claims: Review and explain your recent healthcare claims
what_conditions_do_i_have: Show and explain your active medical conditions
review_my_medications: Review your current medications and prescriptions
check_my_lab_results: Review your recent laboratory results
track_my_vitals: Review your recent vital sign measurements
am_i_up_to_date_on_shots: Check your vaccination history
who_is_on_my_care_team: See who is on your care team
find_in_my_record: Search your health record for specific information
recent_doctor_visits: Review your recent doctor visits and encounters

In Claude Desktop, prompts appear as suggestions you can select. Claude will then automatically call the appropriate tools and explain the results.

Prompt invocation

{
  "method": "prompts/get",
  "params": {
    "name": "summarize_health"
  }
}

#Testing

Use the MCP Inspector for development and debugging. The inspector lets you connect to the MCP server, list available tools and resources, and test invocations.

You'll need a valid access token from a completed Flexpa Consent authorization.

MCP Inspector

npx @modelcontextprotocol/inspector

Connect to https://api.flexpa.com/mcp and add your access token in the Authorization header.

#Transport

The MCP server uses Streamable HTTP transport. This is the modern MCP transport that supports both request-response and streaming patterns over standard HTTP.

CORS is configured to allow requests from the claude.ai, console.anthropic.com, chatgpt.com, and chat.openai.com origins.
